Fluke dtx-sfm 2 fiber modules 4 dtx-1200 dtx-1800 dtxlt

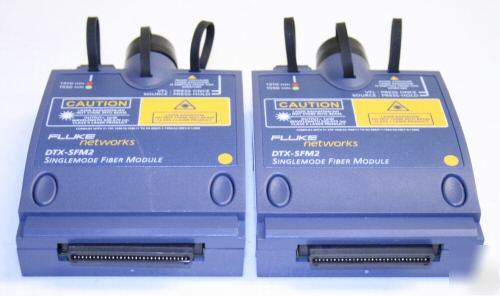

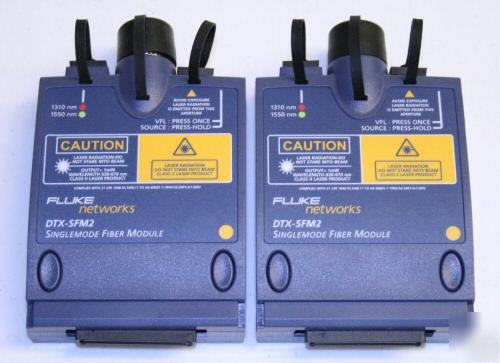

NEW Fluke Networks DTX-SFM2 Single-mode 1310nm 1550nm Fiber Modules for Fluke DTX-1200 & DTX-1800 DTX-LT Cable Analyzer
Cable Analyzer shown in Picture is not included, only fiber module set is included in this sale.
Included Accessories Listed at the Bottom.
Be sure to add us to your Favorites list!.
Warranty: 30 Day Exchange Warranty

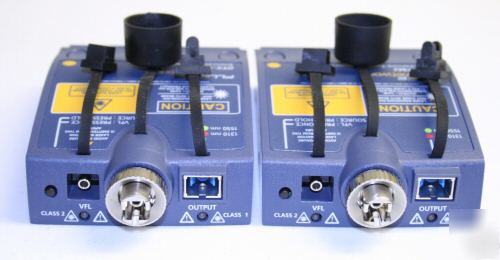

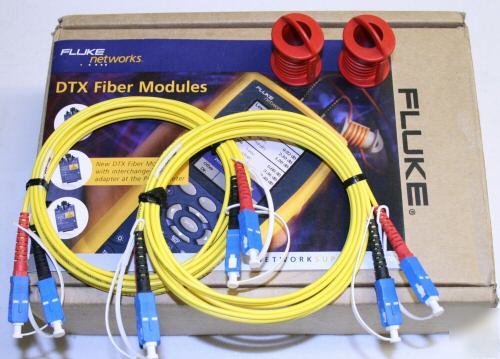

DTX Singlemode Fiber Modules - Includes two modules (one for Main and one for Smart Remote). each module contains 1310 nm and 1550 nm laser light source combined into single output port, 850-1550 nm power meter, integrated VFL, SC adapter for power meter and Singlemode SC-SC Test Reference Cords.
Fluke Networks' DTX-SFM2 set of two DTX Fiber Modules adds record-fast singlemode fiber certification and fault location to the DTX CableAnalyzerâ„¢ Series. Only Fluke Networks' DTX platform offers optional on-board fiber modules so you'll never lose time searching for your fiber adapter. Modules are easy to insert into the back of any DTX Series CableAnalyzer. With a resident fiber module on board, fiber certification is always ready when you are. No other solution lets you switch between copper and fiber with a touch of a button.

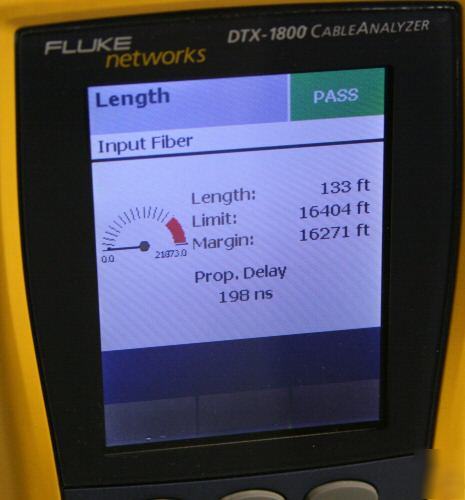

These modules deliver the greatest time and cost savings. They accelerate testing through exclusive technology and an easy-to-use interface. Press the Autotest button and you get standards-compliant certification automatically. Test two fibers each at two wavelengths, measure length and determine the pass or fail status - all in about 12 seconds. That's five times faster than other adapters. These modules let you test more fibers in less time, cutting testing costs and freeing you up for other tasks. They can easily save more than 100 labor hours per year.
DTX-SFM fiber modules use laser sources to ensure standards-compliant certification of singlemode fiber. Speed testing with TALK, FINDFIBER, MONITOR, bi-directional and single fiber test features. Save, upload, manage and print comprehensive certification reports using LinkWare PC software.

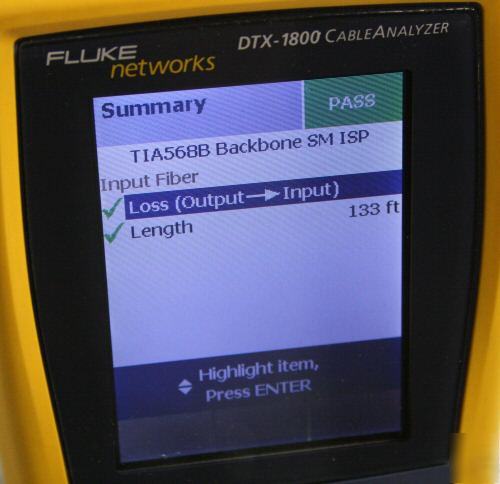

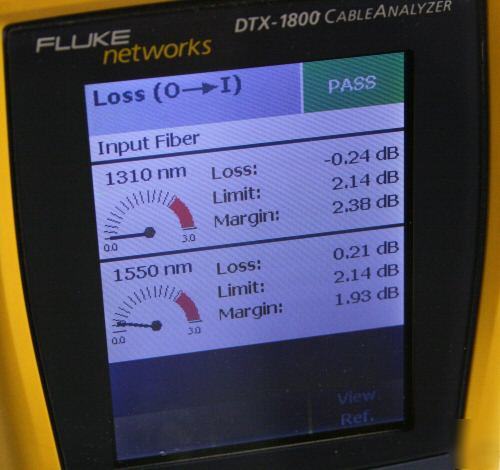

These comprehensive Tier 1 certification solutions include loss, attenuation, length and polarity measurements. You can validate fiber link performance and installation quality. Measure optical loss at multiple wavelengths. And bi-directionally test fibers at two wavelengths without swapping near- and far-end units. Deliver Tier 1 fiber certification reports by uploading test results to LinkWare PC software.
An integrated on-module visual fault locator (VFL) makes troubleshooting simple link problems quick and incredibly easy. The bright laser-driven VFL helps you locate many near-end fiber faults. Also use it to locate fibers as well as verify continuity and polarity. Exclusive integrated design ensures the visual fault locator is always on hand when you need it.

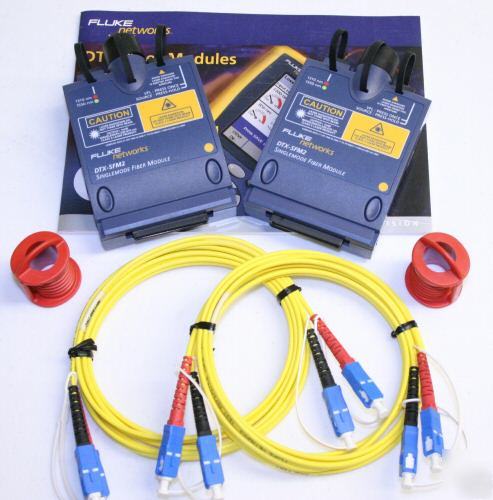

* (2) Fluke DTX-SFM2 Fiber Modules
