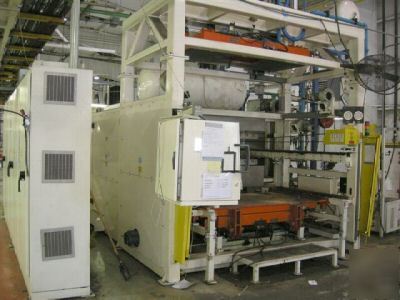

Kiefel KS48/84 roll-fed inline former
Depth of Draw 33" bottom/56" top
Max. sheet sag: 12" for max. sheet size
Platen travel: 28" bottom, 30" top
Sheet level from floor (approx.): 64" w/motorized
Number of heating elements - top: 210 pcs, 250 W
Top platen down capacity: 5,000 lbs
Top platen lifting capacity: 3,500 lbs.
Bottom platen holding force: 16,000 lbs.
This is a roll-to-sheet-fed vacuum thermoformer -
3 Stations - material load station - heating
station - forming station - with a motor driven
clamping frame to move sheets from of vinyl from
Machine is equipped with a sheeter that draws
material from a roll and cuts it into sheets of
Allen Bradley PLC and 6180 PC Operator interface
See our website for more details and other equipment.
Nationwide Machinery Sales, Inc.
* 1950 Brinston Troy Mi. 48083
